NCE, D13J 4-Function DCC Control Decoder w/ 9-Pin DCC Plug, Single, All Scales

Single: 1.03 x .63 x .185" 26 x 16.5 x 4.7mm

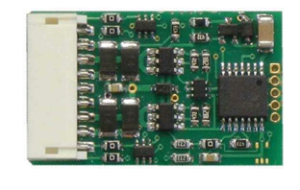

D13J Decoder - new smaller replacement for D13SRJ Direct plug equipped with NMRA 9 pin DCC “Quick Plug” and a 9 pin 8" harness is also included.

Dimensions: 1.03 x 0.630 x .185 inches – 26 x 16.5 x 4.7 mm

Silent Running torque compensated motor drive
Motor rating 3/4 Amp continuous, 1.2 Amp stall
All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
Decoder programming lock mechanism
p/n 5240174
