Nix Trains NTZ 202 Power Bridge II 3-Wire Stay-Alive | All Scales

Our very affordable Smart Power Packs come with a supercapacitor, giving you several seconds of extra power to keep on running on dirty tracks.

PB2 – A smaller supercapacitor is fitted behind the board.

The white cable is a data cable and you can control the length of the extra power with a CV setting, as well as the charging start time. As these Powerpacks charge quite fast, it is important that you set them at a different charging start moment, if you have more locomotive on your layout with these installed.

The Power Bridge 1 & 2  connect to all Train-O-Matic decoders, ESU decoders with connection for a PowerPack, Lenz Gold with USP connection and any decoder supporting the three wire connection for an energy buffer.

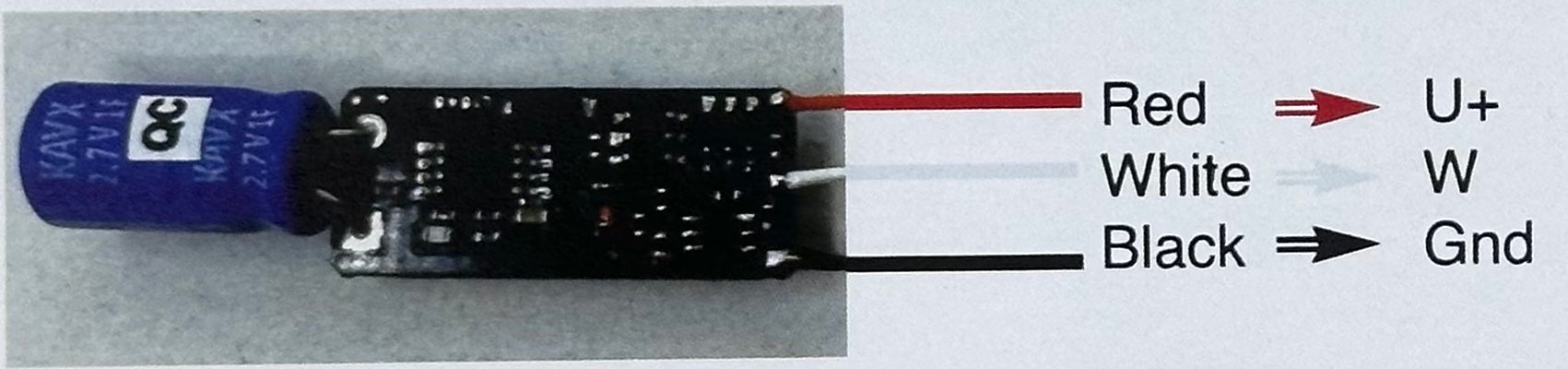

The Power Bridge 1 & 11 may be used as a 2 wire stay alive by connecting the White wire and the Red wire to U+.

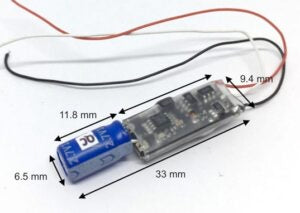

Size w/ cap: 33 x 9.4 x 6.5 mm   1.3 x 0.37 x 0.26 in
Supercap: 6.5 x 11.8 mm              0.26 x 0.46 in
Total Capacitance;  1 Farad
